全局光照

一般光照系统只考虑光源直接照射到物体表面所产生的效果，不会计算光源经过物体表面反射或折射的光线，即间接光照。全局光照系统能够对间接光照进行建模，实现更加逼真的光线效果。

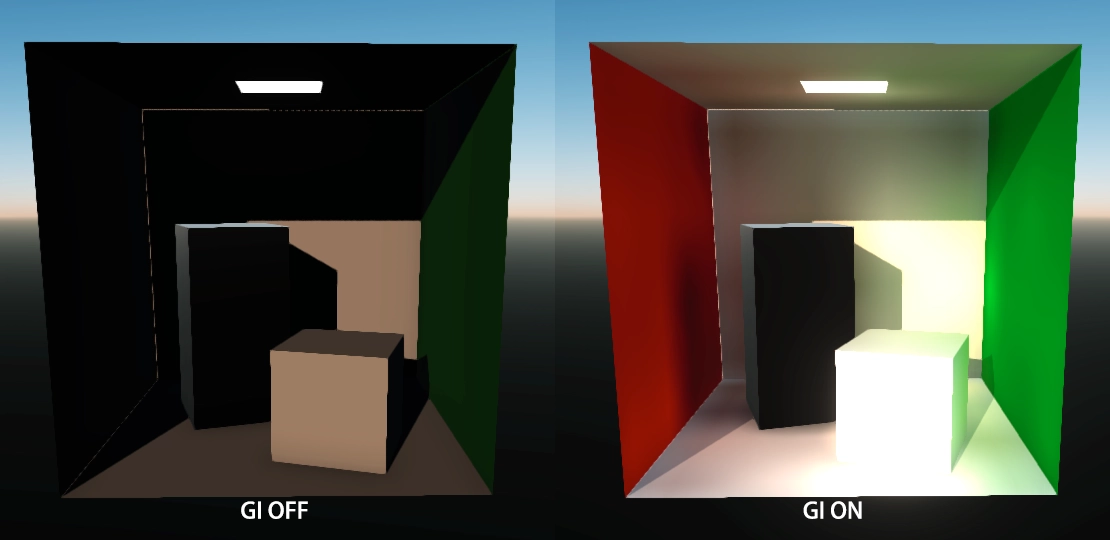

以下为同一个测试场景，关闭GI（左图）和开启GI（右图）的效果对比

probe

原理简介

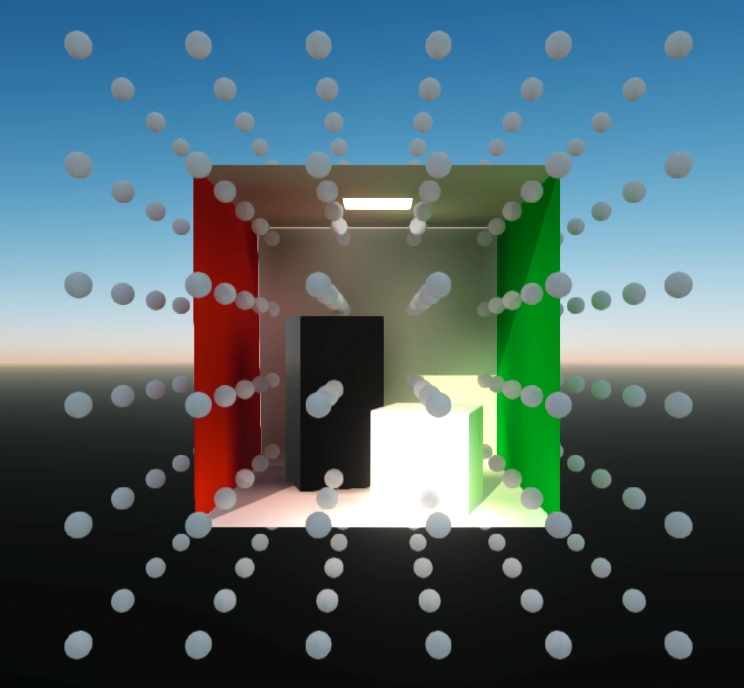

引擎在场景中按照设定的行列以及纵深数量放置了一系列探针 (Probe)，用来收集周围物体的反射光信息。它们会根据所处位置对所在区域的光照信息进行搜集和存储，形成一个动态的间接光 Irrandiance Volume 区域：

volume

在实时着色的阶段，除了计算直接光源的颜色和强度，还会根据着色单元所处的世界坐标，找到对应的探针组，使用三线性插值获得该区域周围的间接光源信息。

使用方法

和其它组件用法一样，只要在场景中添加 GlobalIlluminationComponent 即可打开全局光照

//配置Global Irrandiance 参数
Engine3D.setting.gi.probeYCount = 3
Engine3D.setting.gi.probeXCount = 6
Engine3D.setting.gi.probeZCount = 6
Engine3D.setting.gi.probeSpace = 60
Engine3D.setting.gi.offsetX = 0
Engine3D.setting.gi.offsetY = 10
Engine3D.setting.gi.offsetZ = 0
// 自动更新GI信息，静态场景中可以在渲染完成后手动关闭节省性能
Engine3D.setting.gi.autoRenderProbe = true

//初始化引擎
await Engine3D.init();
let scene = new Scene3D()
let camera = new Object3D()
let mainCamera = camera.addComponent(Camera3D)
scene.addChild(camera)

// 初始化全局光照组件
let probeObj = new Object3D();
probeObj.addComponent(GlobalIlluminationComponent);
this.scene.addChild(probeObj);

// 渲染场景
let view = new View3D()
view.scene = this.scene
view.camera = mainCamera
Engine3D.startRenderView(view)

//配置Global Irrandiance 参数
Engine3D.setting.gi.probeYCount = 3
Engine3D.setting.gi.probeXCount = 6
Engine3D.setting.gi.probeZCount = 6
Engine3D.setting.gi.probeSpace = 60
Engine3D.setting.gi.offsetX = 0
Engine3D.setting.gi.offsetY = 10
Engine3D.setting.gi.offsetZ = 0
// 自动更新GI信息，静态场景中可以在渲染完成后手动关闭节省性能
Engine3D.setting.gi.autoRenderProbe = true

//初始化引擎
await Engine3D.init();
let scene = new Scene3D()
let camera = new Object3D()
let mainCamera = camera.addComponent(Camera3D)
scene.addChild(camera)

// 初始化全局光照组件
let probeObj = new Object3D();
probeObj.addComponent(GlobalIlluminationComponent);
this.scene.addChild(probeObj);

// 渲染场景
let view = new View3D()
view.scene = this.scene
view.camera = mainCamera
Engine3D.startRenderView(view)

根据场景大小，用户可以动态调整探针区域范围：

通过设置 probeXCount, probeYCount, probeZCount 调整探针数量（需渲染前设置）；
通过设置 offsetX, offsetY, offsetZ 调整区域中心位置；
通过调整 probeSpace 调整探针的间距；

配置参数

Engine3D.setting.gi 配置参数。

参数	类型	描述
enable	boolean	开启/关闭
offsetX	number	探针组的注册点在x轴的偏移量
offsetY	number	探针组的注册点在y轴的偏移量
offsetZ	number	探针组的注册点在z轴的偏移量
probeXCount	number	探针在x轴的数量
probeYCount	number	探针在y轴的数量
probeZCount	number	探针在z轴的数量
probeSize	number	每个探针采样到的数据尺寸
probeSpace	number	探针与探针之间的距离
ddgiGamma	number	颜色gamma校正系数
indirectIntensity	number	间接光的光照强度
bounceIntensity	number	反射光的光照强度
octRTMaxSize	number	设置八面体贴图的总尺寸
octRTSideSize	number	设置八面体贴图，每个八面体正方形的尺寸
autoRenderProbe	boolean	设置探针是否自动更新

注意事项

使用全局光照会消耗GPU的部分算力，由于所有的探针Probe对全场景的光照信息进行搜集，这个计算量是不可忽视的，为了让引擎能够正常流畅运行，我们做了分帧处理优化。最终GI的完整效果呈现是一个随时间累积的过程。如果用户对 Irrandiance Volume 区域做了修改，其结果也不是瞬间呈现出来，也会需要一个响应过程。

如果你的场景是静态的，在引擎运行了一段时间后，可以主动关闭 autoRenderProbe，让引擎不再更新GI信息，从而解放这部分算力。

WebGPU is not supported in your browser
Please upgrade to latest Chrome/Edge

import { Object3D, Scene3D, Engine3D, GlobalIlluminationComponent, Vector3, GTAOPost, PostProcessingComponent, HDRBloomPost, AtmosphericComponent, CameraUtil, HoverCameraController, View3D, webGPUContext, DirectLight, KelvinUtil } from '@orillusion/core'
import * as dat from 'dat.gui'

class Sample_GICornellBox {
    scene: Scene3D
    async run() {
        Engine3D.setting.gi.enable = true
        Engine3D.setting.gi.probeYCount = 6
        Engine3D.setting.gi.probeXCount = 6
        Engine3D.setting.gi.probeZCount = 6
        Engine3D.setting.gi.offsetX = 0
        Engine3D.setting.gi.offsetY = 10
        Engine3D.setting.gi.offsetZ = 0
        Engine3D.setting.gi.indirectIntensity = 1
        Engine3D.setting.gi.lerpHysteresis = 0.004 //default value is 0.01
        Engine3D.setting.gi.maxDistance = 16
        Engine3D.setting.gi.probeSpace = 5.8
        Engine3D.setting.gi.normalBias = 0
        Engine3D.setting.gi.probeSize = 32
        Engine3D.setting.gi.octRTSideSize = 16
        Engine3D.setting.gi.octRTMaxSize = 2048
        Engine3D.setting.gi.ddgiGamma = 2.2
        Engine3D.setting.gi.depthSharpness = 1
        Engine3D.setting.gi.autoRenderProbe = true

        Engine3D.setting.shadow.shadowBound = 50
        Engine3D.setting.shadow.autoUpdate = true
        Engine3D.setting.shadow.updateFrameRate = 1

        Engine3D.setting.render.postProcessing.bloom = {
            enable: true,
            debug: false,
            blurX: 4,
            blurY: 4,
            luminosityThreshold: 0.9,
            radius: 4,
            strength: 1.2
        }

        await Engine3D.init({
            canvasConfig: {
                devicePixelRatio: 1
            }
        })
        this.scene = new Scene3D()
        this.scene.addComponent(AtmosphericComponent)

        let mainCamera = CameraUtil.createCamera3DObject(this.scene)
        mainCamera.perspective(60, webGPUContext.aspect, 1, 5000.0)
        let hoverCameraController = mainCamera.object3D.addComponent(HoverCameraController)
        hoverCameraController.setCamera(0, 0, 40, new Vector3(0, 10, 0))

        await this.initScene()

        let view = new View3D()
        view.scene = this.scene
        view.camera = mainCamera
        Engine3D.startRenderView(view)

        let postProcessing = this.scene.addComponent(PostProcessingComponent)
        postProcessing.addPost(HDRBloomPost)
        // add GI
        this.addGIProbes()
    }

    private addGIProbes() {
        let probeObj = new Object3D()
        let GI = probeObj.addComponent(GlobalIlluminationComponent)
        this.scene.addChild(probeObj)
        // add a delay to render GUIHelp menu
        setTimeout(() => {
            this.renderGUI(GI)
        }, 1000)
    }

    private renderGUI(component: GlobalIlluminationComponent): void {
        let volume = component['_volume']
        let giSetting = volume.setting

        function onProbesChange(): void {
            component['changeProbesPosition']()
        }
        let gui = new dat.GUI()
        let f = gui.addFolder('GI')
        f.add(giSetting, `lerpHysteresis`, 0.001, 0.1, 0.0001).onChange(onProbesChange)
        f.add(giSetting, `depthSharpness`, 1.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `normalBias`, -100.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `irradianceChebyshevBias`, -100.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `rayNumber`, 0, 512, 1).onChange(onProbesChange)
        f.add(giSetting, `irradianceDistanceBias`, 0.0, 200.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `indirectIntensity`, 0.0, 3.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `bounceIntensity`, 0.0, 1.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `probeRoughness`, 0.0, 1.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `ddgiGamma`, 0.0, 4.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, 'autoRenderProbe')
        f.close()

        let f2 = gui.addFolder('probe volume')
        f2.add(volume.setting, 'probeSpace', 0.1, volume.setting.probeSpace * 5, 0.001).onChange(() => {
            onProbesChange()
        })
        f2.add(volume.setting, 'offsetX', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(volume.setting, 'offsetY', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(volume.setting, 'offsetZ', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(
            {
                show: () => {
                    component.object3D.transform.enable = true
                }
            },
            'show'
        )
        f2.add(
            {
                hide: () => {
                    component.object3D.transform.enable = false
                }
            },
            'hide'
        )
        f2.open()
    }

    async initScene() {
        let box = await Engine3D.res.loadGltf('https://cdn.orillusion.com/gltfs/cornellBox/cornellBox.gltf')
        box.localScale = new Vector3(10, 10, 10)
        this.scene.addChild(box)

        let lightObj = new Object3D()
        lightObj.x = 0
        lightObj.y = 30
        lightObj.z = -40
        lightObj.rotationX = 30
        lightObj.rotationY = 160
        lightObj.rotationZ = 0
        this.scene.addChild(lightObj)

        let dirLight = lightObj.addComponent(DirectLight)
        dirLight.lightColor = KelvinUtil.color_temperature_to_rgb(5355)
        dirLight.castShadow = true
        dirLight.intensity = 30
    }
}

new Sample_GICornellBox().run()

import { Object3D, Scene3D, Engine3D, GlobalIlluminationComponent, Vector3, GTAOPost, PostProcessingComponent, HDRBloomPost, AtmosphericComponent, CameraUtil, HoverCameraController, View3D, webGPUContext, DirectLight, KelvinUtil } from '@orillusion/core'
import * as dat from 'dat.gui'

class Sample_GICornellBox {
    scene: Scene3D
    async run() {
        Engine3D.setting.gi.enable = true
        Engine3D.setting.gi.probeYCount = 6
        Engine3D.setting.gi.probeXCount = 6
        Engine3D.setting.gi.probeZCount = 6
        Engine3D.setting.gi.offsetX = 0
        Engine3D.setting.gi.offsetY = 10
        Engine3D.setting.gi.offsetZ = 0
        Engine3D.setting.gi.indirectIntensity = 1
        Engine3D.setting.gi.lerpHysteresis = 0.004 //default value is 0.01
        Engine3D.setting.gi.maxDistance = 16
        Engine3D.setting.gi.probeSpace = 5.8
        Engine3D.setting.gi.normalBias = 0
        Engine3D.setting.gi.probeSize = 32
        Engine3D.setting.gi.octRTSideSize = 16
        Engine3D.setting.gi.octRTMaxSize = 2048
        Engine3D.setting.gi.ddgiGamma = 2.2
        Engine3D.setting.gi.depthSharpness = 1
        Engine3D.setting.gi.autoRenderProbe = true

        Engine3D.setting.shadow.shadowBound = 50
        Engine3D.setting.shadow.autoUpdate = true
        Engine3D.setting.shadow.updateFrameRate = 1

        Engine3D.setting.render.postProcessing.bloom = {
            enable: true,
            debug: false,
            blurX: 4,
            blurY: 4,
            luminosityThreshold: 0.9,
            radius: 4,
            strength: 1.2
        }

        await Engine3D.init({
            canvasConfig: {
                devicePixelRatio: 1
            }
        })
        this.scene = new Scene3D()
        this.scene.addComponent(AtmosphericComponent)

        let mainCamera = CameraUtil.createCamera3DObject(this.scene)
        mainCamera.perspective(60, webGPUContext.aspect, 1, 5000.0)
        let hoverCameraController = mainCamera.object3D.addComponent(HoverCameraController)
        hoverCameraController.setCamera(0, 0, 40, new Vector3(0, 10, 0))

        await this.initScene()

        let view = new View3D()
        view.scene = this.scene
        view.camera = mainCamera
        Engine3D.startRenderView(view)

        let postProcessing = this.scene.addComponent(PostProcessingComponent)
        postProcessing.addPost(HDRBloomPost)
        // add GI
        this.addGIProbes()
    }

    private addGIProbes() {
        let probeObj = new Object3D()
        let GI = probeObj.addComponent(GlobalIlluminationComponent)
        this.scene.addChild(probeObj)
        // add a delay to render GUIHelp menu
        setTimeout(() => {
            this.renderGUI(GI)
        }, 1000)
    }

    private renderGUI(component: GlobalIlluminationComponent): void {
        let volume = component['_volume']
        let giSetting = volume.setting

        function onProbesChange(): void {
            component['changeProbesPosition']()
        }
        let gui = new dat.GUI()
        let f = gui.addFolder('GI')
        f.add(giSetting, `lerpHysteresis`, 0.001, 0.1, 0.0001).onChange(onProbesChange)
        f.add(giSetting, `depthSharpness`, 1.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `normalBias`, -100.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `irradianceChebyshevBias`, -100.0, 100.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `rayNumber`, 0, 512, 1).onChange(onProbesChange)
        f.add(giSetting, `irradianceDistanceBias`, 0.0, 200.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `indirectIntensity`, 0.0, 3.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `bounceIntensity`, 0.0, 1.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `probeRoughness`, 0.0, 1.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, `ddgiGamma`, 0.0, 4.0, 0.001).onChange(onProbesChange)
        f.add(giSetting, 'autoRenderProbe')
        f.close()

        let f2 = gui.addFolder('probe volume')
        f2.add(volume.setting, 'probeSpace', 0.1, volume.setting.probeSpace * 5, 0.001).onChange(() => {
            onProbesChange()
        })
        f2.add(volume.setting, 'offsetX', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(volume.setting, 'offsetY', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(volume.setting, 'offsetZ', -100, 100, 0.001).onChange(onProbesChange)
        f2.add(
            {
                show: () => {
                    component.object3D.transform.enable = true
                }
            },
            'show'
        )
        f2.add(
            {
                hide: () => {
                    component.object3D.transform.enable = false
                }
            },
            'hide'
        )
        f2.open()
    }

    async initScene() {
        let box = await Engine3D.res.loadGltf('https://cdn.orillusion.com/gltfs/cornellBox/cornellBox.gltf')
        box.localScale = new Vector3(10, 10, 10)
        this.scene.addChild(box)

        let lightObj = new Object3D()
        lightObj.x = 0
        lightObj.y = 30
        lightObj.z = -40
        lightObj.rotationX = 30
        lightObj.rotationY = 160
        lightObj.rotationZ = 0
        this.scene.addChild(lightObj)

        let dirLight = lightObj.addComponent(DirectLight)
        dirLight.lightColor = KelvinUtil.color_temperature_to_rgb(5355)
        dirLight.castShadow = true
        dirLight.intensity = 30
    }
}

new Sample_GICornellBox().run()

WebGPU Shader

后处理特效

全局光照

原理简介

使用方法

配置参数

注意事项

全局光照 ​

原理简介 ​

使用方法 ​

配置参数 ​

注意事项 ​

全局光照

原理简介

使用方法

配置参数

注意事项
